Loading Print Media

Print Media is the paper and ink that you will need to print from your Dye Sublimation Photo Printer. As authorised resellers for Citizen, Mitsubishi and HiTi, you’ll be able to purchase your genuine print media from System Insight.

We offer a price pledge service so in the unlikely event you find it cheaper elsewhere, simply give us a call and we’ll match the price.

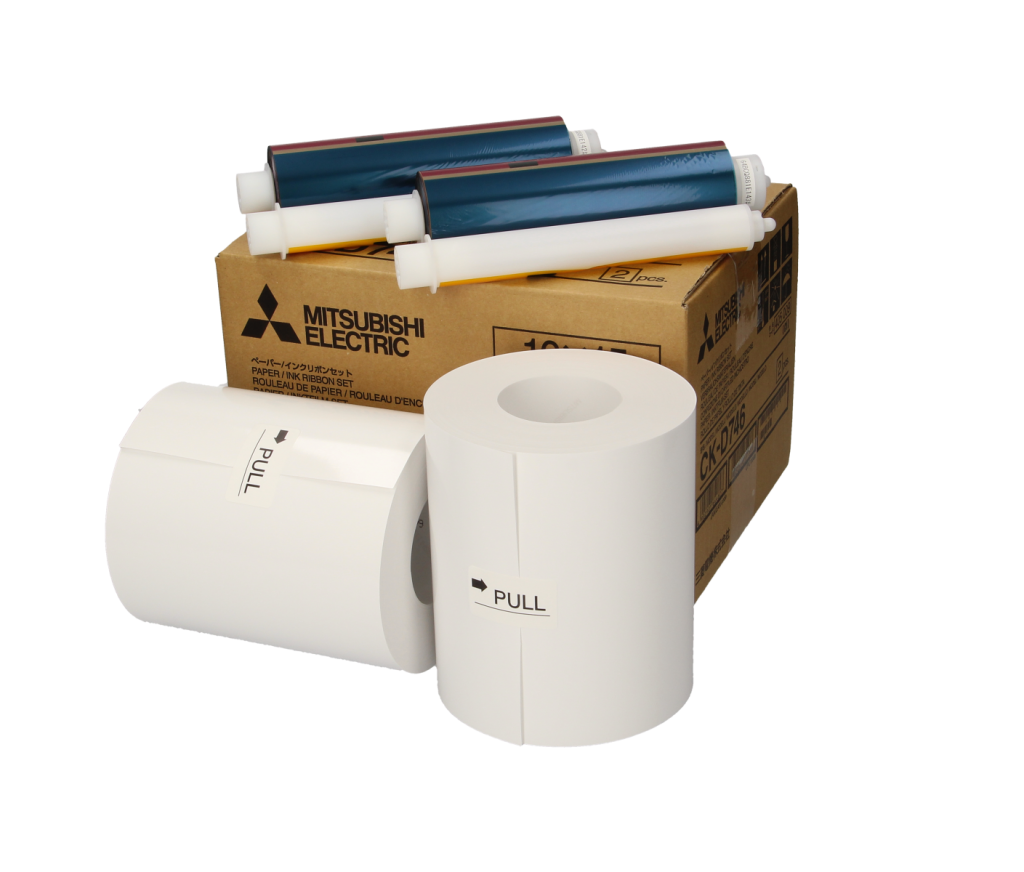

Mitsubishi Print Media
Mitsubishi Print Media

How to load Photo Print Media

Want to know more about the dye sublimation photo printing process then check out our about dye sublimation section

Loading media is quick, easy and clean. There are two components: paper roll or sheets of paper and a ribbon. There are usually supplied in the same box for nearly all printers.

It’s simply a case of opening the printer and removing the old paper roll and ribbon. Check your printer manual for details of how to open the printer to change the media.

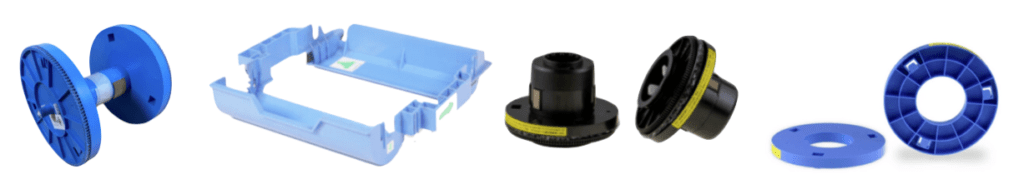

Paper Spools and Ribbon Trays
Paper Spools and Dye Sub Ribbon Trays

With some printers the media is loaded from the front and others it is loaded from the top. This might make a difference when using the printer depending upon where it is used. For top-loading machines that are under a desk or in a flight case you might need to move the printer to load the media. On front loading machines loading the media in these locations is much easier.

Loading CP-D70 Media
Loading HiTi P525 Media
Loading W5000 Media

Print Ribbon and Paper supplied together.

Ribbon and Paper are always changed at the same time for media types where both the ribbon and paper are shipped in the same box.

The ribbon will be completely used and one spindle will be empty and the take up spool will be full. The paper roll however will NOT be completely exhausted but should be replaced at the same time for media types where both are supplied in the same box.

Some ribbons come with the ribbon tray attached but some photo media just contains the ribbon and the ribbon tray is re-used.

CK9069 Media
CK9069 Media

Ribbon and Paper supplied separately.

If the paper and ribbon are supplied as different products then the paper doesn’t have to changed at the same time as it maybe be used at a different rate to the ribbon.

The Mitsubishi W5000 is a good example of this as it can print many sizes on the media so the ribbon and paper are used at different rates. For this reason paper and ribbon media are sold separately.

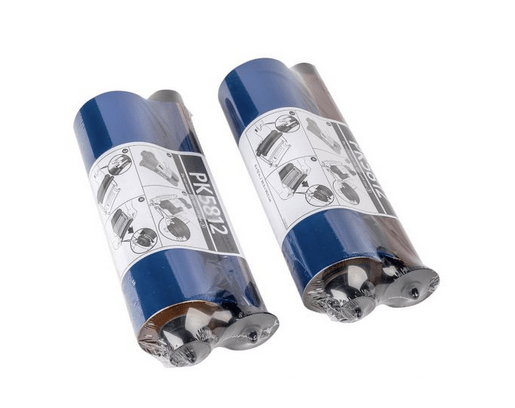

PK5812 - Mitsubishi W5000 Ribbon Media
PK5812 – Mitsubishi W5000 Ribbon Media

Ribbon Trays

Most Dye Sub Photo Printer use a re-usable tray each time the ribbon is changed and shouldn’t be thrown away. Spare ribbon trays are usually available to purchase should you wish to keep a spare or switch between media sizes regularly.

When changing your print media always ensure you empty the waste print clippings tray on your printer.

Some ribbons come supplied in a tray or cassette and this is simply inserted into the printer.

.

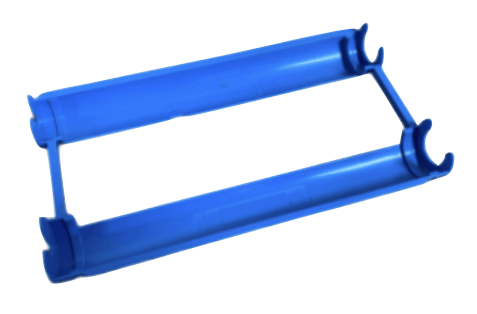

Dye Sub Photo Printer Ribbon Tray
Mitsubishi D70 Ribbon Tray
A dye sub printer ribbon with an Integral Tray
Ribbon with integrated tray
ImageNameSummaryPriceStockDetails
HiTi CS300/310/320 Ribbon Tray
HiTi CS300/310/320 Ribbon Tray

Ribbon Tray for the CS300, CS310, CS320

£15.00 ex-vat

Out of stock

Info / Buy Now
P510S 6x8 Ribbon Tray
P510S 6x8 Ribbon Tray

Re-usable Ribbon Tray for HiTi P510S series- 6×8 Media

£19.99 ex-vat

In stock

Info / Buy Now
Mitsubishi K60 Ribbon Tray Cassette
Mitsubishi K60 Ribbon Tray Cassette

Mitsubishi K60 Ribbon Tray Cassette

£19.99 ex-vat

In stock

Info / Buy Now
P510S 4x6 Ribbon Tray
P510S 4x6 Ribbon Tray

Re-usable Ribbon Tray for HiTi P510S series- 4×6 Media

£19.99 ex-vat

In stock

Info / Buy Now
P510S 5x7 Ribbon Tray
P510S 5x7 Ribbon Tray

Re-usable Ribbon Tray for HiTi P510S series- 5×7 Media

£19.99 ex-vat

In stock

Info / Buy Now
CP3020D(A)E Ribbon Tray
CP3020D(A)E Ribbon Tray

Ribbon Tray for the CP3020DA(E).

£21.50 ex-vat

In stock

Info / Buy Now
CP9550DW Series Ribbon Tray
CP9550DW Series Ribbon Tray

CP9550DW Series Ribbon Tray. Also fits CP9500 (DW and DW-S Models)

£22.00 ex-vat

In stock

Info / Buy Now
Ribbon Tray for D70, D707, D80
Ribbon Tray for D70, D707, D80

Ribbon Tray for the CP-D70, CP-D80, CP-D707. The tray fits the Red (DW-S) and Grey (DW) versions of these printers. This tray holds the ribbon cassette and is supplied with the printer. Suitable for all media sizes.

£28.60 ex-vat

In stock

Info / Buy Now
CP9800DW Series BLUE Ribbon Tray
CP9800DW Series BLUE Ribbon Tray

CP9800DW Series BLUE Ribbon Tray

£29.99 ex-vat

In stock

Info / Buy Now
CP3800DW Ribbon Tray
CP3800DW Ribbon Tray

CP3800DW Replacement Ribbon Tray

£46.25 ex-vat

In stock

Info / Buy Now

Paper Spindles and Spacers

Most paper rolls will need to be attached to paper spools before being loaded into the printer. These paper spools fit on each end of the paper roll. Paper spools are supplied with your printer but are also available as spare parts. They are specific to your printer and not usually interchangable with other printers although some models may share the same spindles.

Paper spools may also be supplied with spacers. These spacers are used when changing the media from a six inch roll to a 5 inch roll. Some older HiTi printers have a paper box which the paper is installed into. Sheet fed printers use a paper tray as the paper is supplied flat and not on a roll although these printers tend to be smaller for home use and lower volumes.

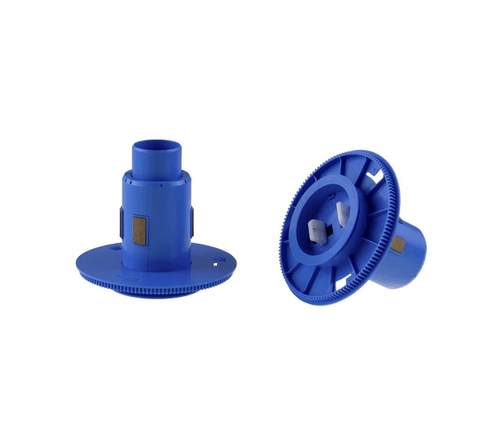

Mitsubishi D70 Media Spindles
Mitsubishi D70 Media Spindles.
ImageNameSummaryPriceStockDetails
HiTi P510 Series Paper Box
HiTi P510 Series Paper Box

Compatible with the P510 Printer series that use Orange and Green Spindles. Holds the paper only. No Spindles, Box Only

£15.00 ex-vat

In stock

Info / Buy Now
CP-D70/D80/D707 Paper Spacers
CP-D70/D80/D707 Paper Spacers

Mitsubishi D70 7×5 spacers to fit the D70 Paper Spindles. For D70/D707/D80. For use with 7×5 Media these fit onto the standard Paper Spindles

£19.99 ex-vat

In stock

Info / Buy Now
HiTi P510 Series 7x5 Spacers
HiTi P510 Series 7x5 Spacers

A pair of spacers compatible with HiTi P510 Series Printers.

£21.30 ex-vat

In stock

Info / Buy Now
P510 Paper Spindle Green
P510 Paper Spindle Green

P510 Green Paper Spindle

£23.85 ex-vat

In stock

Info / Buy Now
P510 Paper Spindle Grey
P510 Paper Spindle Grey

P510 Grey Paper Spindle

£23.85 ex-vat

In stock

Info / Buy Now
P910L Left Hand Paper Spindle-White
P910L Left Hand Paper Spindle-White

Left Hand (White) Paper Spindle for a HiTi P910L Printer. Two spindles are required in total and come with the printer. This is a replacement spare part.

£24.95 ex-vat

In stock

Info / Buy Now
P910L Right Hand Paper Spindle-Blue
P910L Right Hand Paper Spindle-Blue

Right Hand (Blue) Paper Spindle for a HiTi P910L Printer. Two spindles are required in total and come with the printer. This is a replacement spare part.

£24.95 ex-vat

In stock

Info / Buy Now
CP9550DW Series Paper Spindles
CP9550DW Series Paper Spindles

Set of Paper Roll Spindles (and spacers) for the CP9500 Series

£25.00 ex-vat

Out of stock

Info / Buy Now
HiTi P520 Series Paper Spindles
HiTi P520 Series Paper Spindles

HiTi P520/525 Paper Spindles (No Spacers)

£27.65 ex-vat

In stock

Info / Buy Now
CP9800DW Series Paper Spindles
CP9800DW Series Paper Spindles

1x pair of CP9800DW and CP9810DW Spindles.

£29.99 ex-vat

In stock

Info / Buy Now
P520 Series - 7x5 Paper Spacers
P520 Series - 7x5 Paper Spacers

P520 7×5 Spacers for fitting to the Paper Spindles (Pair)

£33.80 ex-vat

In stock

Info / Buy Now
CP-D70, D80, D707 Paper Spindles
CP-D70, D80, D707 Paper Spindles

Set of Paper Roll Spindles (without 7×5 spacers) for the CP-D70, CP-D707 and CP-D80DW.

£39.00 ex-vat

In stock

Info / Buy Now
CP3800 Paper Spindle (Each)
CP3800 Paper Spindle (Each)

CP3800DW Single Paper Spindle

£42.35 ex-vat

In stock

Info / Buy Now
